How Big Is a 510 Cartridge Once You Measure It?
The thread is standard but the tank around it isn’t and that’s the whole reason we measure. The two definitions above agree on ten threads and disagree on what the 5 refers to. Neither one says a word about the glass or the mouthpiece.
| Cartridge | Published size | What it means for the box |
|---|---|---|
| CCELL TH2 EVO, 0.5 ml | 10.5 mm diameter, 52 mm tall | The shorter carton in a two size range |
| CCELL TH2 EVO, 1 ml | 10.5 mm diameter, 62 mm tall | Same width and 10 mm taller so it needs its own carton |
Those figures are for one maker’s cartridge and a different mouthpiece or a flared base changes both numbers. We build the dieline from the filled unit you send and not from a chart.
Does a Vape Cartridge Need Child Resistant Packaging?
In a licensed cannabis market it does, and California spells out how the rule lands on a cartridge. The state treats a cartridge as a product that needs single use child resistant packaging. That means the package only has to resist a child until it’s first opened.
Two routes satisfy that rule in California and both are worth knowing. The first is packaging certified under the Poison Prevention Packaging Act at 16 CFR 1700.15 and tested under 16 CFR 1700.20 with 50 children and 100 adults. The second is heat sealed plastic at least 4 mils thick with no easy open tab or dimple or corner. A printed carton on its own is neither of those things. We build it around a certified tube or a sealed blister and let that component carry the claim.
How Does a Filled Cartridge Get to the Customer?
Not through the mail in most cases, and that changes how the shipper carton is built. The Postal Service barred electronic nicotine delivery systems from the mail on October 21, 2021. Its definition covers any device that aerosolizes nicotine or flavor or any other substance. A THC or CBD cartridge is inside that wording even with no nicotine in it.
A business to business exception covers licensed parties who use age verified delivery and that route rides a corrugated outer. We quote the retail carton and the shipper together with a count that matches the case size your distributor wants.
Which Board and Structure Should a Cartridge Box Use?
| Specification | What we run |
|---|---|
| Material | White SBS folding carton board, kraft board, or wrapped rigid for premium lines |
| Board weight | 300 to 400 GSM for retail cartons, roughly 0.35 to 0.52 mm |

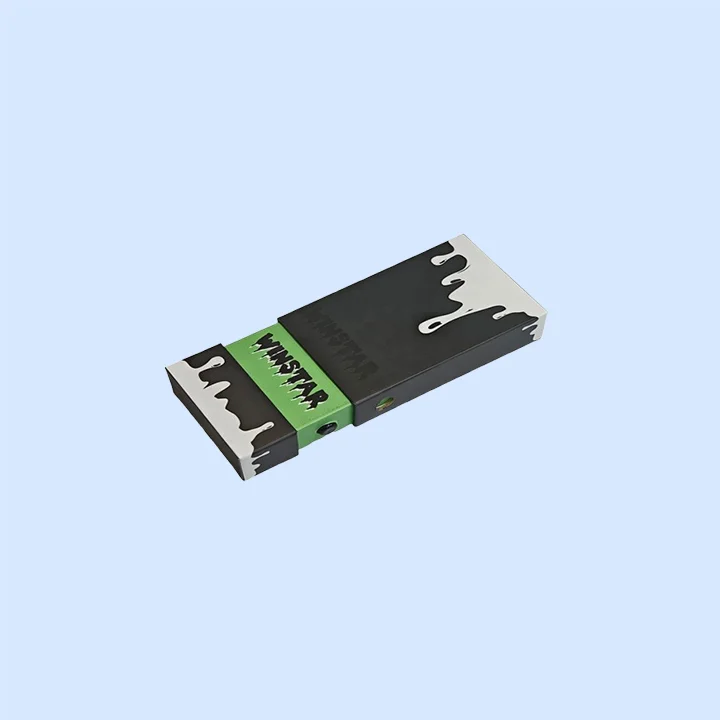

| Box structure | Straight tuck end over a certified tube, push and slide with tray, two piece rigid |

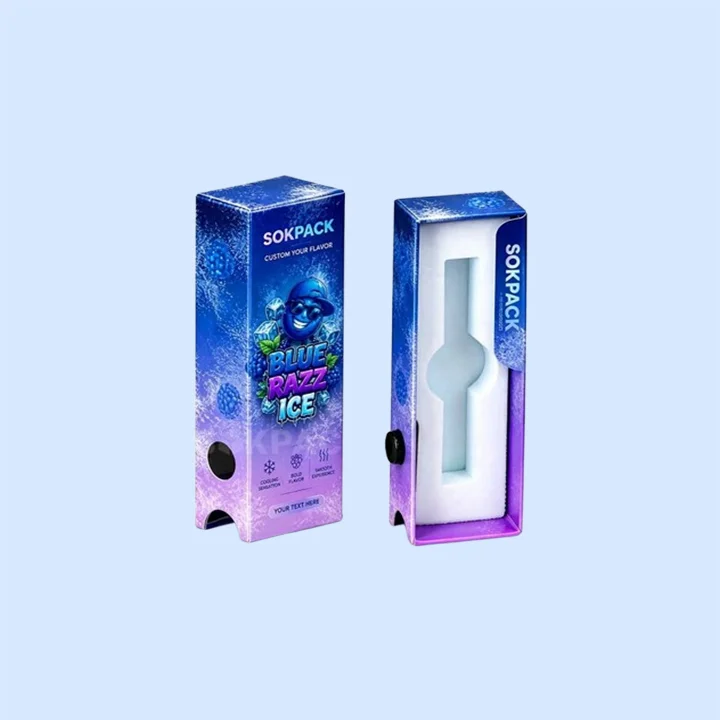

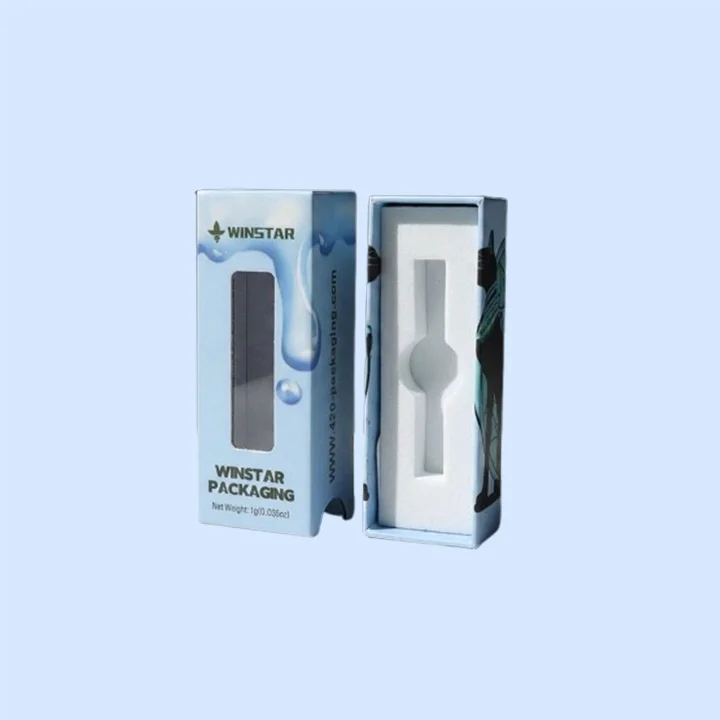

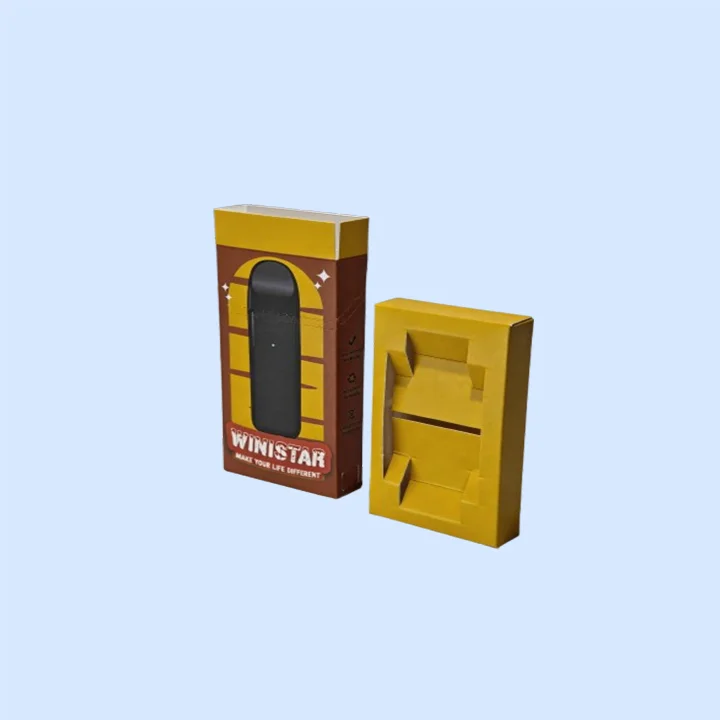

| Insert | Die cut card or foam bed holding the cartridge upright so the glass can’t knock |
| Coatings | Matte or gloss lamination, soft touch, aqueous coating |
| Artwork | Vector PDF or AI on our dieline, 3 mm bleed, state warning panels placed first |
The 300 to 400 GSM band suits 510 cartridge packaging for a single unit. The insert matters more than the board because a loose cartridge chips at the mouthpiece.
Minimum Order, Lead Time, and Samples
- The minimum order is 100 boxes per size, so a 0.5 ml and a 1 ml range starts at 200 boxes
- Folding cartons run 8 to 10 business days after you approve the dieline and rigid runs 10 to 12
- A plain sample takes 3 to 5 business days and a printed sample takes 7 to 10 business days
- Price breaks for cartridge boxes wholesale land at 500 and 1,000 units on the same artwork and the same size
Request a Quote
Send us one filled cartridge with the mouthpiece fitted along with your run quantity and the state you sell in. We’ll measure it and quote a folding carton and a rigid option on the same dimensions.
